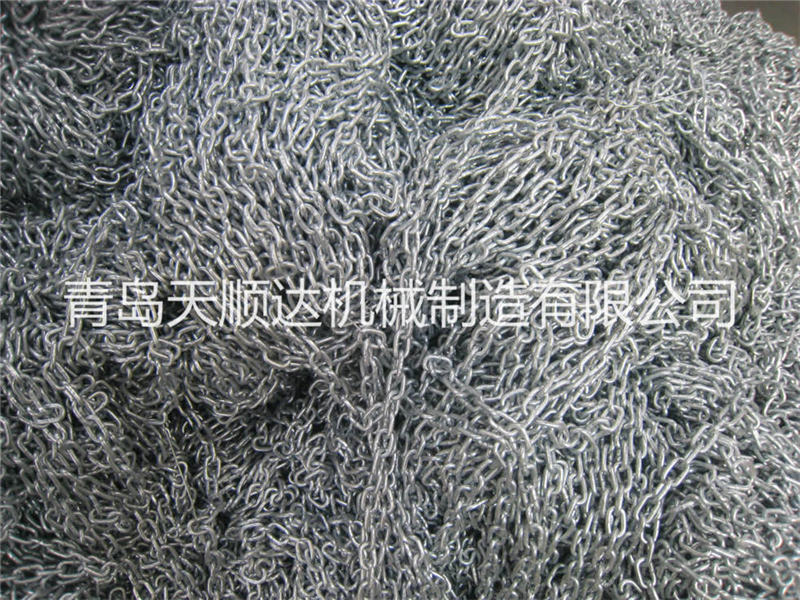

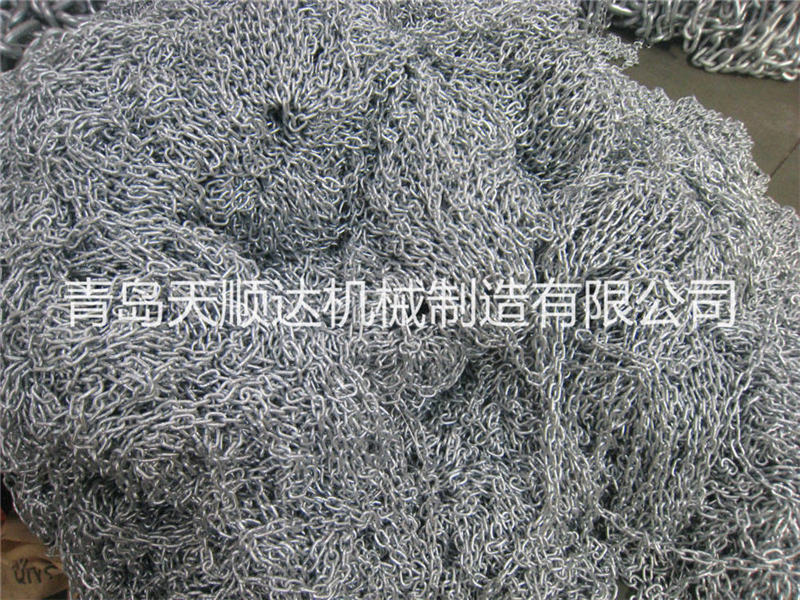

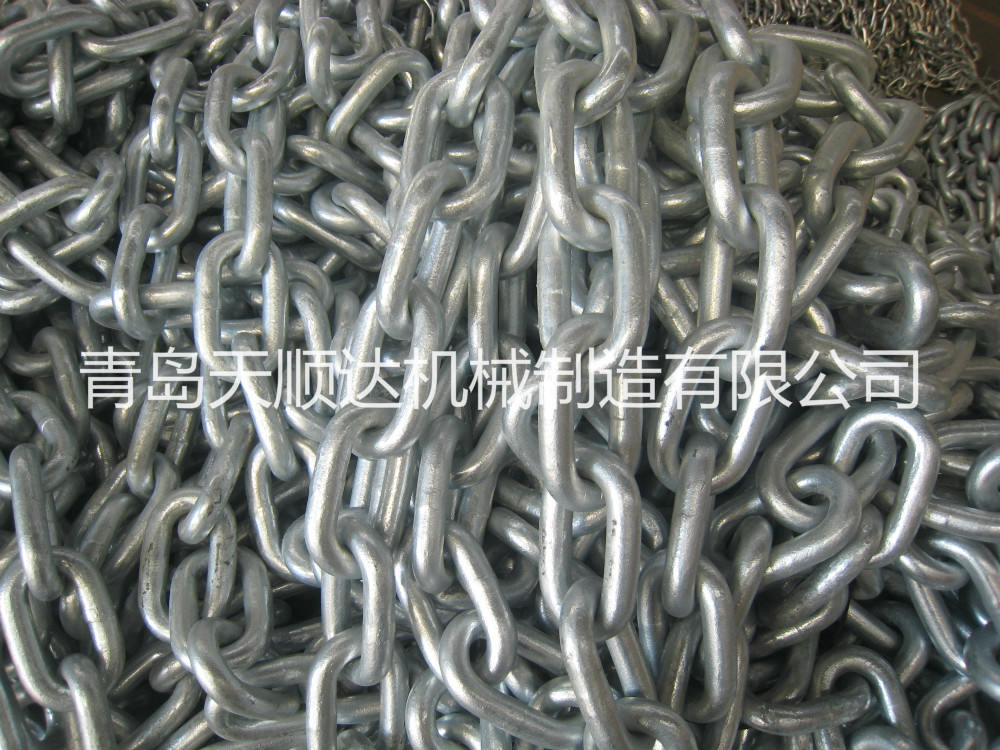

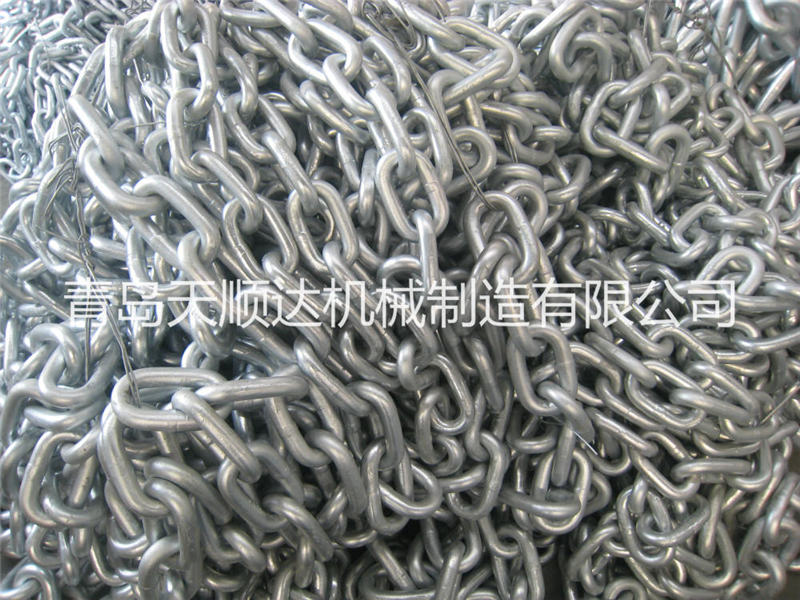

| DIN766鏈條 |
| 材料: 20Mn2 |
| 表面處理: 熱鍍鋅 電鍍 發(fā)黑 |
| 鏈徑Dmm | 內(nèi)長Lmm | 外寬Bmm | 米重KG | 拉斷負(fù)荷KN | 規(guī)格圖示 |
| 4 | 16 | 13.7 | 0.32 | 8 |  |
| 5 | 18.5 | 17 | 0.5 | 12.5 | |
| 6 | 18.5 | 20.2 | 0.8 | 16 | |
| 7 | 22 | 23.8 | 1.1 | 25 | |
| 8 | 24 | 27.2 | 1.4 | 32 | |
| 9 | 27 | 30.6 | 1.8 | 40 | |
| 10 | 28 | 34 | 2.2 | 50 | |
| 11 | 31 | 37.4 | 2.7 | 63 | |
| 12 | 36 | 40.8 | 3.1 | 71.5 | |
| 13 | 36 | 44.2 | 3.8 | 80 | |
| 14 | 41 | 47.6 | 4.4 | 100 | |
| 16 | 45 | 54.4 | 5.7 | 125 | |
| 18 | 50 | 61.2 | 7.3 | 160 | |
| 19 | 53 | 64.6 | 7.97 | 180 | |
| 20 | 56 | 68 | 9 | 200 | |
| 22 | 62 | 75 | 11 | 232 | |
| 23 | 64 | 78.2 | 12 | 250 | |
| 26 | 73 | 88.4 | 15 | 320 | |
| 28 | 78 | 95.2 | 18 | 400 | |
| 30 | 84 | 102 | 19.5 | 450 | |
| 32 | 90 | 108.8 | 23 | 500 |
